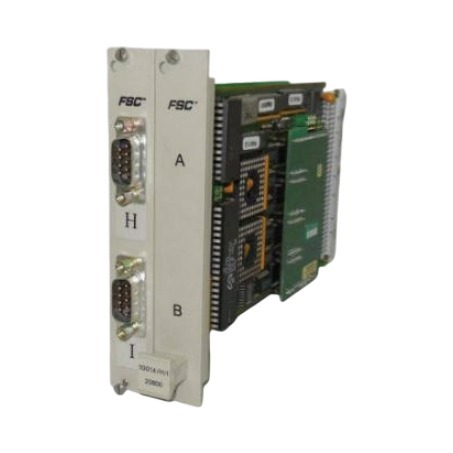

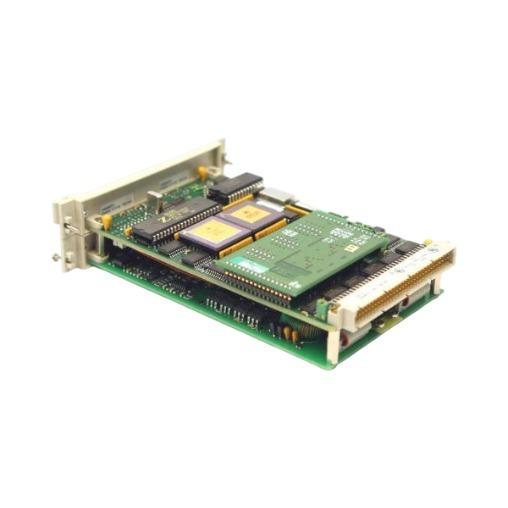

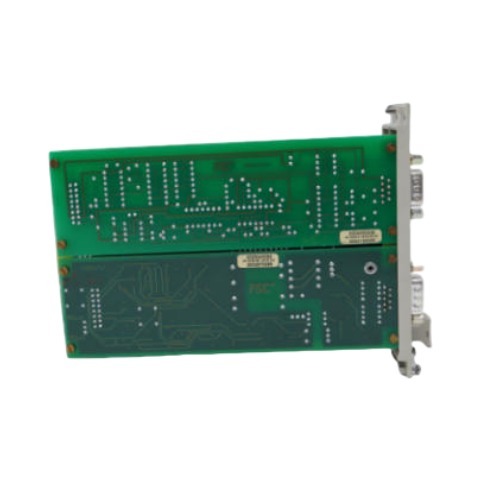

10014/H/F FSC System Communication Interface Module

The 10014/H/F Communication Module is designed for Fail Safe Control (FSC) systems, providing a communication interface between the safety control system and connected external devices. It supports data exchange within industrial control architectures, making it an essential component where information from control equipment, monitoring stations, or compatible communication devices needs to be transferred to the FSC environment.

The module is identified as a communication module for FSC applications and incorporates Flash Memory and 16 input channels according to available product information. Its communication-oriented design distinguishes the 10014/H/F from central processing modules and dedicated field input modules, with its primary role centered on maintaining data exchange between system components.

• Reliable External Device Communication: Provides a dedicated communication path between the FSC system and compatible external equipment, allowing important system information to be exchanged without placing communication functions on primary field I/O modules.
• Tri-State RS232 Interface: Supports a Tri-State RS232 interface for communication with connected devices, making it particularly relevant to established installations that rely on serial communication.
• Flash Memory for System Support: Integrated Flash Memory maintains communication-related information within the system, valuable for supporting long-running FSC installations where replacement hardware needs to fit into existing system architecture.

• Asia Pacific: China, South Korea, Japan, India, Southeast Asia
• Middle East: Saudi Arabia, UAE, Qatar
• North America: United States, Canada
• Europe: Germany, United Kingdom, France, Russia, Turkey
• Latin America: Brazil, Argentina, Mexico

• Fail Safe Control (FSC) systems
• Safety Instrumented Systems
• Industrial process safety
• Emergency shutdown applications
• Oil & gas facilities
• Chemical processing plants
• Power generation facilities
• Existing safety control system maintenance
• Legacy control system lifecycle support

An industrial facility operating an established safety control system required a replacement communication module during scheduled maintenance. The 10014/H/F Communication Module was selected to maintain communication between the existing FSC architecture and connected external equipment.

By replacing the affected communication hardware while retaining the established control architecture, the maintenance team was able to address the communication requirement without undertaking a complete redesign of the safety control system.
