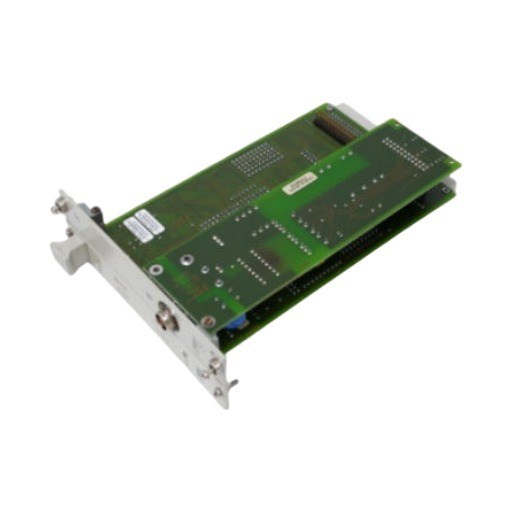

10018/E/1 FSC PlantScape Ethernet Communication Module

The 10018/E/1 FSC PlantScape Ethernet Communication Module is designed to provide an Ethernet communication connection between a Fail Safe Control (FSC) system and the PlantScape control environment. Installed in the central part of the FSC system, the module manages Ethernet-based data exchange between the safety control system and the external control network.

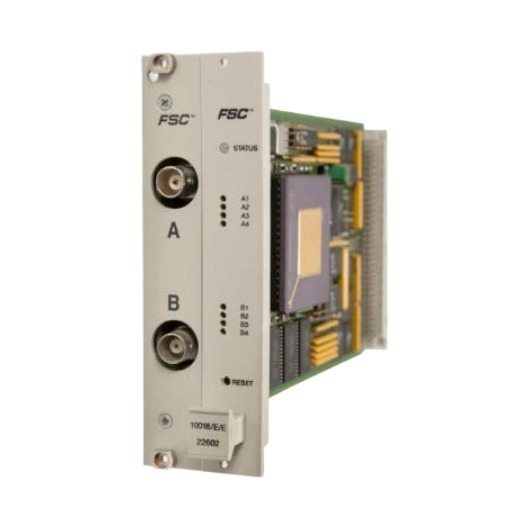

The 10018/E/1 incorporates its own processor and memory resources to handle the Ethernet communication interface, reducing the communication workload placed on the FSC central processor. The module uses one isolated Ethernet interface, making it suitable for FSC installations that require a dedicated Ethernet connection to the PlantScape system. The 10018/E/E version provides two Ethernet interfaces, while the 10018/E/1 provides one.

• Dedicated Ethernet Connection - Provides a dedicated Ethernet communication path between the FSC system and the PlantScape environment, allowing safety-system information exchange while keeping communication function within a dedicated module.
• Independent Communication Processing - Features its own processor and memory resources for controlling the Ethernet interface, reducing processing burden on the FSC central processor through dedicated hardware operation.
• Single-Interface Configuration - Specifically configured with one Ethernet interface in position A, while position B is left empty. This distinguishes it from the 10018/E/E, which uses two Ethernet interfaces for connection redundancy.

• Asia Pacific: China, South Korea, Japan, India, Southeast Asia
• Middle East: Saudi Arabia, UAE, Qatar
• North America: United States, Canada
• Europe: Germany, United Kingdom, France, Russia, Turkey
• Latin America: Brazil, Argentina, Mexico

• Fail Safe Control (FSC) systems
• Safety Instrumented Systems
• Industrial process safety
• Emergency shutdown applications
• Oil & gas facilities
• Chemical processing plants
• Power generation facilities
• Existing safety control system maintenance
• Legacy control system lifecycle support

An industrial FSC facility replaced its Ethernet communication module during scheduled maintenance. The 10018/E/1 was chosen for single Ethernet connectivity, enabling seamless restoration of communication between FSC and plant control systems without altering the existing safety control architecture design integrity.

• Export to 40+ countries
• Complete after-sales service
• Stable supply chain to ensure continuous supply
• COO, COC and CQ support
• Rapid quotation response

• GSI127 244-127-000-017 A1-B01
• IQS450 204-450-000-002 A2-B23-H05-I0
• IPC707 244-707-000-012 A2-B1-C98100-D3-E10-F5000-G1
• IPC704 244-704-000-042 A2-B03-C100-D100-E5-F10000-G0-H0-I0
• TQ902-011 111-902-000-011 A5-B1-C80-D2-E5000-F2-G4800-H05
• 3500/15 106M1079-01
• 3500/22M 138607-01
• 106M1081-01
• 125768-01
• 9907-147

• Professional installation required for optimal performance and safety
• Ensure proper mounting and adequate ventilation
• Comply with all applicable electrical safety standards
