Foxboro FBM242 16-channel Discrete Output Module with 2A per Channel and Galvanic Isolation

Product Categories
Sumset International Trading Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

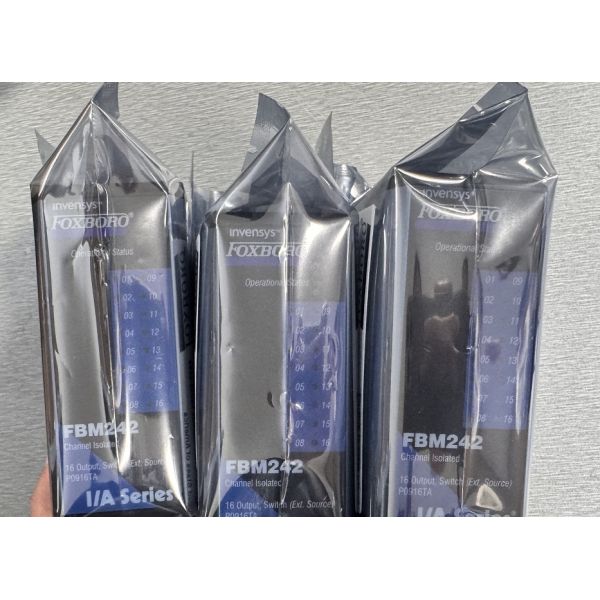

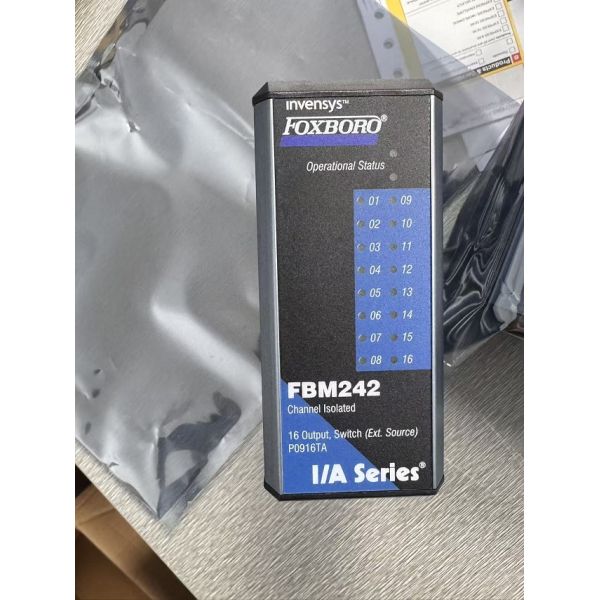

Foxboro FBM242 16-channel Discrete Output Module with 2A per Channel and Galvanic Isolation

  • 1
  • 2
  • 3

Brand Name : Foxboro

Model Number : FBM204

Place of Origin : USA

MOQ : 1

Price : $400

Payment Terms : T/T

Supply Ability : 999

Delivery Time : 5-7days

Product Id : Foxboro FBM242 Discrete Output Module

Brand : Foxboro

Series : FBM242

Model number : FBM242

Warranty : 1 Year

Function : Good

Condition : New

Contact Now

Foxboro FBM242 Discrete Output Module


Description:


The Foxboro FBM242 is a 16-channel, externally - sourced discrete output (DO) interface module belonging to the Foxboro I/A Series Distributed Control System (DCS) I/O subsystem, now part of Schneider Electric. It is mainly used to transmit control signals from the DCS controller to on - site discrete devices, so as to realize the on - off control of equipment such as valves, pumps, and actuators.


Parameter Description
Number of Channels 16 discrete output channels
Output Rating 2A per channel (max), 60V DC (direct drive); 120V AC/125V DC, 240V AC (with TA)
Isolation Galvanic isolation between channels and ground
Dimensions Approx. 241mm × 145mm × 56mm (9.5×5.7×2.2in)
Operating Temperature Industrial grade (-40°C to 85°C)
Humidity 0-95% (non - condensing)


Foxboro FBM242 16-channel Discrete Output Module with 2A per Channel and Galvanic IsolationFoxboro FBM242 16-channel Discrete Output Module with 2A per Channel and Galvanic IsolationFoxboro FBM242 16-channel Discrete Output Module with 2A per Channel and Galvanic Isolation


Foxboro FBM242 16-channel Discrete Output Module with 2A per Channel and Galvanic Isolation
